SP801E Wifi LED Controller Art-Net Magic LED Matrix Panel Module WS2811 WS2812B Light Strip Wireless Control iOS Android DC5-24V

$52.00 Regular price $34.70
Unit price
per

Shipping calculated at checkout.
SP801E Wifi Art-Net Magic LED Controller LED Matrix Panel Module WS2812B WS2811 Light Strip Wireless Control iOS Android DC5-24V

Features:

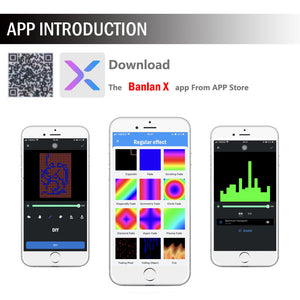

1. APP controlled via WiFi, compatible with multiple Art-Net computer software ;
2. BluFi configuration using dual mode chip(WIFI&BT);
3. Support AP mode and STA mode;
4. Two layout setting method: regular rectangle layout setting and importing DXF files ;
5. Support two layers overlay, built-in multiple types of effect layers: text layer, music effect layer...;
6. The effect layers support a variety of custom parameters: direction, width, color, length, shape...;
7. Real-time preview, support recording the current scene to the controller storage;
8. Support change device name ,reorder the RGB order, and OTA update.

Specifications:
Working temperature : -20℃~60℃;
Working Voltage : DC5V~24V;
Working Current : 25mA~130mA;
Flash Capacity : 128M;

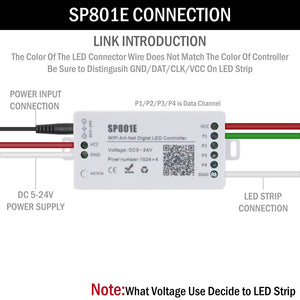

Output signal: 4-port TTL signals;
Maximum pixel number : 1024 / port;
LED driver IC: Normal one-wire RZ code LED driver IC.
