SPI LED Pixel Controller H807SA 8CH H807SB WIFI 4CH Artnet/DMX

$145.15 Regular price $68.04
Unit price
per

Shipping calculated at checkout.

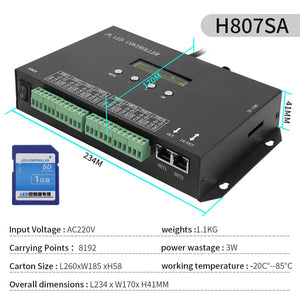

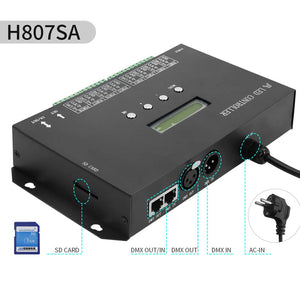

807SA Art-Net SPI LED Controller

1. Introduction

H807SA is an 8 ports output detachable single machine controller that can control up to 8192 points. Supports the Art Net protocol, supports addressing of DMA chips, can connect to the DMA console, and can add or delete DAT files through the local area network.

Currently, the driver chips that can be controlled include DMX512, HDMX, APA102, APA102-65536, WS2801, WS2811, WS2812, WS2812, WS2813, TM1812, TM1809, TM1804, TM1923, TM1934, TM1925D, TM1926D, TM1803, TM1814, TM1913, TM1914, TM1926, UCSUCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, UCS8904, UCS5603, UCS9812, UCS2603, SK9816, SK6816 12. SM16716, SM16703, SM16709, SM16712, SM16704 SM16714, LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, INK1003, APA104, P943, LC8812, GW6205, QED3110, D9866E, D9866B, D9865C, D9865E, D9865F, D9864B, D9864C, MBI6023, MBI6024, ADT6610, TLC5971, JCS0104, etc.

LD1510, LD1512, LD153X (only supports 8bit mode)

The supporting software is "LED Programming Software" V4.47 and above.

2. Performance characteristics

(1) Eight output ports, controlling up to 8192 pixels. Each port can control a maximum of 1024 points.

(2) The SD card supports FAT32 and FAT16 formats, and allows up to 64 DAT files.

(3) Multiple synchronization control can be achieved through a local area network.

(4) You can switch files by sending UDP instructions to network port 2, or obtain the current playing file number, etc.

(5) Can connect to the DMA console, supports RGBW, can replace files, adjust speed and brightness, and has fast response time.

(6) Supports the Art Net protocol and can directly use software that supports Art Net such as MADRIX and Jinx.

(7) Support encryption function for limiting the number of power cycles.

(8) Supports addressing of the DMA chip, with built-in counting and internal control testing functions.

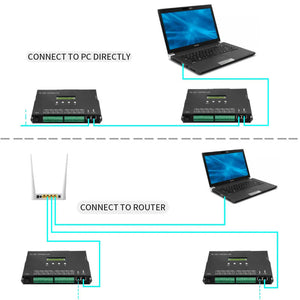

(9) It can be connected or disconnected, and can be directly connected to a computer network card, router, or main controller.

(10) Supports online firmware upgrades.

(11) W can be inserted.

(12) Customizable timed playback function.

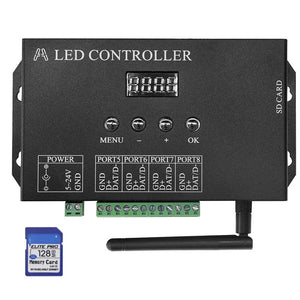

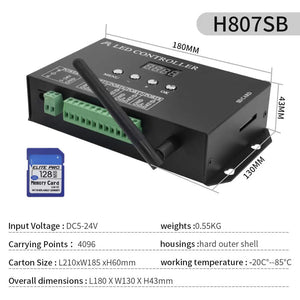

H807SB WIFI SPI LED Controller

Pay Attention:

H807SB No DMX Function if you need DMX function please Choose H807SA.

1. Introduction

H807SB is a controller with WIFI function. The V3 version starts to support Bluetooth remote control, with four output ports and a maximum control of 4096 points. The input voltage is DC5-24V. It can be used for Android mobile app control, web page control of various operating systems, wireless synchronization of multiple controllers, and wireless control of the DMA console.

The communication distance between H807SB and H807SB, as well as between H807SB and mobile phones, is open and unobstructed for more than 60 meters. The communication distance between Bluetooth remote control and H807SB is open and unobstructed for more than 30 meters.

The controllable LED driver chips include DMX512, HDMX, MY9941, UCS1903, UCS1909, UCS1912, WS2811, WS2812, WS2813, TM1809, TM1812, TM1913, TM1926, P943, P9883, SM16703, SM16709, SM16712, etc. The output timing of this controller is different from other controllers, so the control effect and performance of a certain driver chip should be based on actual measurement.

The supporting software is "LED Programming Software" V5.03 and above.

Note:The Bluetooth remote control is not standard and needs to be purchased separately.

2. Performance characteristics

(1) Four output ports, controlling up to 4096 pixels.

(2) The SD card supports FAT32 and FAT16 formats, and allows up to 64 DAT files.

(3) Use your phone to switch files, adjust speed and brightness, and set unicast or full playback settings.

(4) Can set WIFI working mode and support WEB control.

(5) Multiple synchronization control can be achieved through WIFI.

(6) Can connect to the DMA console through WIFI, supports RGBW, can replace files, adjust speed and brightness, and has fast response time.

(7) Supports online point tracing and offline point counting.

(8) DAT files can be received and saved to an SD card through WIFI.

(9) Supports firmware upgrades.

(10) Supports Bluetooth remote control.
